Loctite is owned by Henkel (China) Investment Co., LTD., which became a Henkel brand in 1997. Loctite is well known for its high-quality adhesives and sealants.Since the advent of anaerobic technology more than 50 years ago, Loctite products have been used in machines and components across a wide range of industries.
Given the fierce competition in today's market, companies need to be flexible and fast to respond to new challenges.We meet these requirements through deep research and development and produce technologically advanced products.Our range of products can speed up the manufacturing process, reduce costs and improve quality.
Loctite products provide solutions for the entire adhesive technology and manufacturing process, which are used in the electronics, automotive, aerospace and biomedical sectors.
Loctite offers much more than quality products; it provides effective solutions to specific problems in a variety of industrial environments.Loctite's engineers, chemists and salespeople work with customers to understand their problems and solve them.They translate ideas into practical solutions and combine resources to create advanced technologies that benefit their customers
Loctite Thread locking agent: It is one of the solutions to ensure that threaded components remain locked and secure throughout their service life, with stability and economy.As it is applied drop by drop to the fastener thread, Loctite thread locking agent, in liquid form, fills the gaps between the matching threads.After coating, the locking agent solidifies to form a hard thermosetting plastic that holds the threads together, thus preventing harmful loosening, leakage, and corrosion
Easy to use effective anti-loose heat resistance up to 220℃ anti-rust anticorrosion easy to disassemble
| Spiral locking agent | ||||||||||
| Product code | Part number | Packing specification | color | Main features of product | viscosity (cP) 20 rpm |
thixotropy (Yes/No) |
Failure torque/average removal torque, M10 steel nut bolts(N.m,lb.in) | Temperature range | Initial setting time (min) |
Maximum bolt size |
| Low strength | ||||||||||

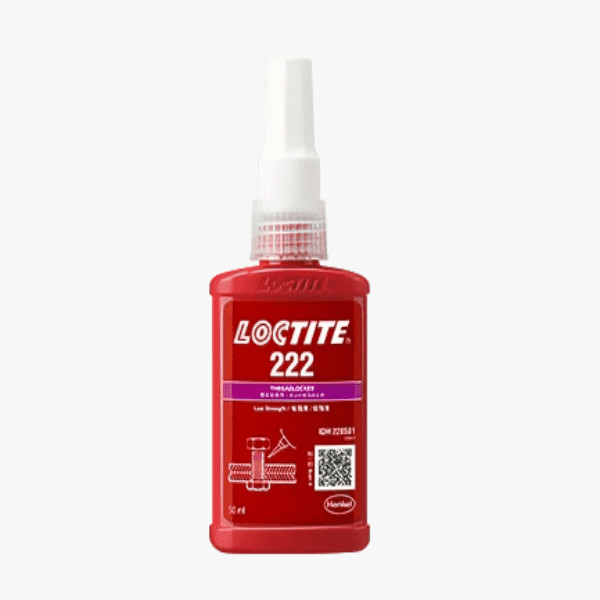

| 222 | 228581 | 50 ml | purple | Small screws, Universal type, remove with hand tools | 1200 | Yes | 6/14N.m 50/120 lb.in |
-65°F to 300°F (-55℃ to 150℃) |
20 | M8 |
| 228582 | 250 rml | |||||||||
| Medium strength | ||||||||||
| 243 | 1311329 | 10 ml | blue | Universal type, no accelerant, disassembly with hand tools | 2150 | Yes | 26/5 Nm 230/40 lb.in |
-65°F to 360°F (-55℃ to 180℃) |
10 | M36 |
| 1311320 | 50 mll | |||||||||
| 1311322 | 250 ml | |||||||||
| 248 | 525715 | 19g | blue | Easy sizing, semi-solid glue stick, no dripping, no stains | semi-solid | 23/25 Nm 200/225lb.in |
-65°F to 300°F (-55℃to 150℃) |
5 | M50 | |
| 290 | 232085 | 50 ml | green | After assembly sizing, penetration level, disassemble with hand tools | 40 | No | 10/29 Nm so/260 lbin |
-65°F to 300°F (-55℃ to 150℃) |
20 | M6 |
| 235226 | 250 ml | |||||||||
| High strength | ||||||||||
| 263 | 1307415 | 50ml | red | Universal type | 500 | No | 33/33Nm 290/290 lbin |
-65°F to 360°F (-55℃ to 180℃) |
10 | M25 |
| 1307416 | 250ml | |||||||||
| 268 | 525717 | 19g | red | Easy sizing, semi-solid glue stick | semi-solid | 10/40 Nm 30/355 b.in |
-65°F to 300°F (-55℃ to 150℃) |
M50 | ||
| 277 | 236613 | 50ml | red | Suitable for large bolts with coarse thread | 7000 | No | 32/32 Nm 2s0/28o lbin |
-65°F to 300°F (-55℃ to 150℃) |
45 | M80 |
| 232083 | 250 ml | |||||||||
| 381168 | 1000 ml | |||||||||
| 209744 | 1L | |||||||||
