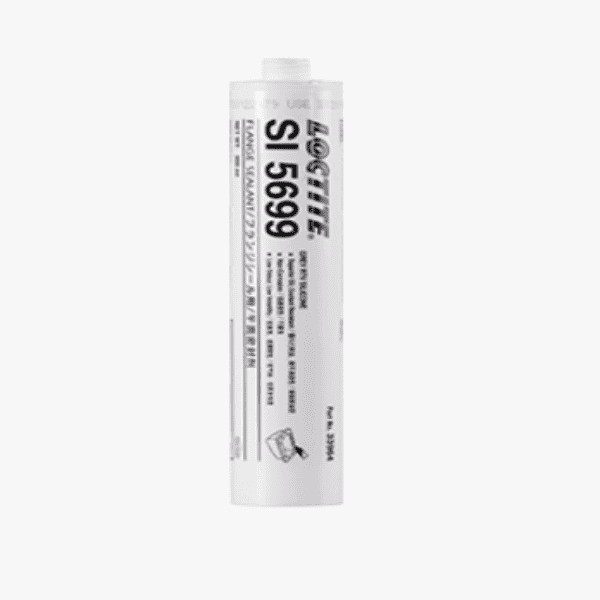

Loctite SI 5699 Flat Sealant For Stamping Or Flexible Flanges With Temperature Resistance Of 200℃
Loctite is owned by Henkel (China) Investment Co., LTD., which became a Henkel brand in 1997. Loctite is well known for its high-quality adhesives and sealants.Since the advent of anaerobic technology more than 50 years ago, Loctite products have been used in machines and components across a wide range of industries.
Given the fierce competition in today's market, companies need to be flexible and fast to respond to new challenges.We meet these requirements through deep research and development and produce technologically advanced products.Our range of products can speed up the manufacturing process, reduce costs and improve quality.
Loctite products provide solutions for the entire adhesive technology and manufacturing process, which are used in the electronics, automotive, aerospace and biomedical sectors.
Loctite offers much more than quality products; it provides effective solutions to specific problems in a variety of industrial environments.Loctite's engineers, chemists and salespeople work with customers to understand their problems and solve them.They translate ideas into practical solutions and combine resources to create advanced technologies that benefit their customers
Easy to operate, 100% interstitial efficiency, continuous sealing, solvent resistance, high pressure resistance
Overview:
Loctite Flat sealer strongly and efficiently seals and strengthens flanges to prevent gas and liquid leakage.The flat sealant is liquid and can fill the gap between the two matching flanges.With the flat sealant curing into a hard thermosetting plastic, the metal flange is bonded together to withstand the dynamic load and prevent leakage
| Flat surface sealed | |||||||||
| Product code | Part number | Packing specification | color | Main features of product | Max filling gap (without accelerator) [in.] | viscosity mPa.s | Thixotropy (Yes/No) | Temperature range | Initial setting time steel |
| Rigid machined flange | |||||||||
| 510 | 235255 | 50 ml | Opaque pink | High temperature application | 0.01 in. (0.25 mm) | 200,000-7,500,000 (2.5 rpm) | Yes | -65°F至400°F (-55℃至200℃) |
25 |
| 231352 | 300 ml | ||||||||
| 515 | 232089 | 300 ml | Dark purple | Universal type | 0.01 in (0.25 mm) | 700,000-1.700,000 (0.5 rpm) | Yes | -65°F至300°F (-55℃至150℃) |
30 |
| 518 | 2099619 | 50 ml | red | Applicable to cast iron, steel and aluminum flanges | 0.01 in (0.25 mm) | 3,000,000-4,500,000 (0.5 rpm) | Yes | -65°F至300°F (-55℃至150℃) |
20 |
| 2099618 | 300 ml | ||||||||
| 5188 | 1104312 | 300 ml | red | Oil and chemical resistance | 0.01 in. (0.25 mm) | 11,000-32,000 mPa.s | No | -65°F至300°F (-55℃至150℃) |
25 |
| Pressed or flexible flange | |||||||||
| Product code | Part number | Packing specification | color | Main features of product | Viscosity cPs(mPa.s) Or extrusion rate g/min |
Temperature range | Surface drying time (min) | ||
| SI 596 | 231567 | 300 ml | red | High temperature resistance (deacidification) | 73,000 cPs | -75°F至600°F (-59℃至316℃) |
20 | ||
| SI 598 | 231569 | 85 g | black | Oil resistance, aging resistance, weather resistance | 340 g/min | -54℃至260°C | 25 | ||
| 231571 | 300 ml | ||||||||
| SI 5699 | 1875108 | 95g | grey | Good oil resistance suitable for flexible flange machining or Cast surface, metal or plastic |
200 g/min | -67°F至392°F (-55℃至200℃) |
30 | ||
| 577653 | 300 ml | ||||||||
| SI 5900 | 578867 | 300 ml | black | Excellent oil resistance, high adhesion, Resists joint movement |
30 g/min | -67°F至392°F (-55℃至200℃) |
15 | ||
| SI 5910 | 472841 | 50 ml | black | Suitable for all kinds of plastic, glass, ceramic, metal, with Good oil resistance and resistance to buying mobility |
500 g/min | -67°F至392°F (-55℃至200℃) |
40 | ||
| 652996 | 300 ml | ||||||||
| 1367531 | 50 ml | ||||||||
| SI 5970 | 2051993 | 50 ml | black | Good resistance to oil and joint mobility | 60 g/min | -67°F至392°F (-55℃至200℃) |
25 | ||
