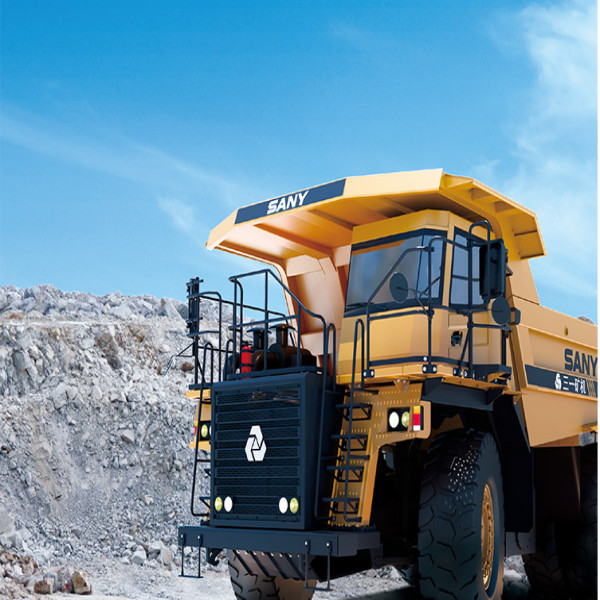

SRT55D Mine Unloading Car Engine Power: 480kW Carriage Volume: 35m³ Load Capacity: 55t
SRT95C Mine dump truck product introductio:
Sany SRT series mine dump truck is a kind of heavy and short-distance material transport equipment developed for open-pit mining and large-scale engineering construction. It has strong power, safety and reliability, and high attendance rate. It is especially suitable for heavy load, large slope and off-road conditions.After more than 10 years of technology research and development, upgrading, currently a total of 95 tons, 55 tons and 45 tons rated deadweight of three mature models, and widely used in coal, steel, non-ferrous metal mining mines, as well as cement, DAMS and other production, construction fields
Product advantage
bridge
. High-strength skeleton design meets the FOPS/ROPS safety certification for anti-falling objects and anti-tipping
. Panoramic windshield design, wide vision, small blind area.
Full hydraulic brake
. "front dry disc, after oil cold disc" braking system, independent, non-interference, safe and reliable
. Equipped with accumulator respectively, the front and rear braking system can still respond to the emergency when the engine fails
Steering and suspension system
. Break type double trapezoidal mechanism, effectively alleviate the mutual influence of the left and right tire beating, stable operation
. Maffer-type independent suspension, side impact is carried by A-type arm, suspension can only withstand upward turbulence.
. Patented oil-gas suspension cylinder, damping performance is more than 20% better than similar products.
Rigid frame
. Closed box beam design, high strength, good torsional resistance
. High strength and low alloy steel castings are used in the stress concentration area, with high reliability.
Double "V" type trunk design
.Automatic material centring, reduce the loading equipment position adjustment times, high loading efficiency.
.The car box is made of high hardness, high strength wear-resistant steel plate, wear-resisting and smashing.
Hydraulic system
.Steel pipe + hose layout, beautiful pipeline, oil temperature is about 5°C lower than similar products
.Equipped with brake, steering accumulator, engine failure can be emergency response.
.Patented hydraulic oil tank, strong anti-pollution ability.Hydraulic oil replacement cycle extended to more than 3000h, low maintenance cost.
intelligentization
.Central LCD combined instrument, fault diagnosis, and can be recorded and stored, convenient troubleshooting
.CAN bus design +GPS system, vehicle operation data can be remotely monitored and queried through mobile customer cloud APP online.
Product parameter
Item parameter
Maximum climbing grade (%) 30
Maximum speed (km/h) 53

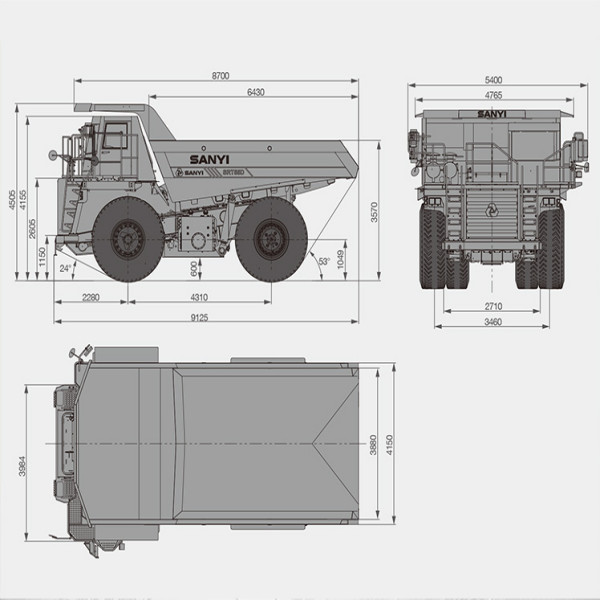

Size: Full length (mm) 9155
Size: Full width (mm) 6095
Size: Full height (mm) 4505
Total engine power (kw/hp) 565k/768HP(1900 rpm)
Carriage volume (m3) paperback 26/ pile 35
Steering form - split double trapezoid structure, full hydraulic steering
Performance & technical parameters
Displacement: 15.9L
Engine form: 4 stroke, turbo increase/intercooling
Engine type: Benz OM502LA
Transmission: AH 6620AR type electronic automatic control transmission
Carriage volume (stacked) : 35m³
Chassis equipped with lifting cylinder equipment: 10t
Key parameters:
Engine power: 480kW
Carriage volume: 35m³
Load capacity: 55t
