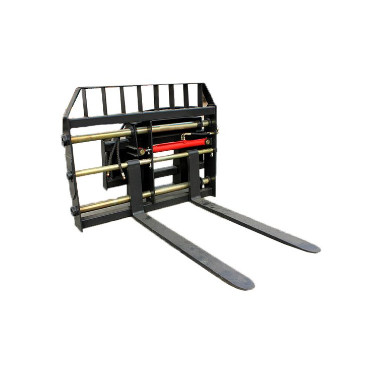

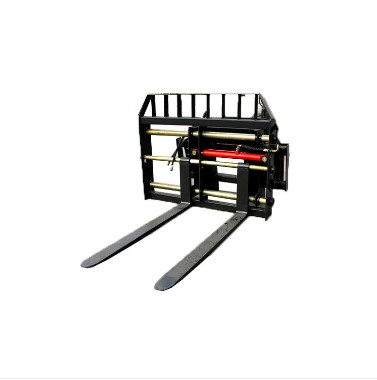

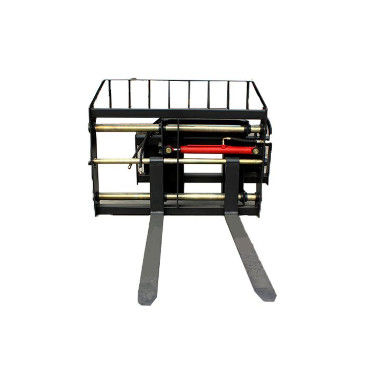

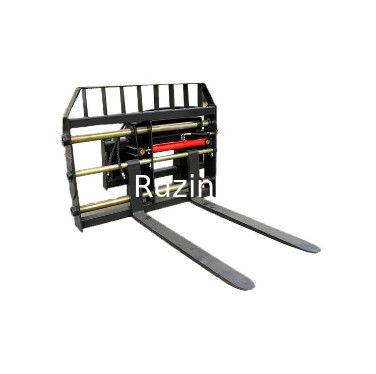

Multifunctional Sliding Loader Supporting Operation Tools Lateral Displacement Cargo Fork
Main features of the product:
1, the machine is controlled by the main engine hydraulic cylinder shrinkage to complete the left and right movement of the machine, with simple
operation, convenient maintenance.
2. When supporting small loader, please install (receiving bucket, tipping bucket) limit block according to the host situation.
Main technical parameters of the product:
| Model | 040760 |
| Overall length(mm) | 1855 |
| Overall width(mm) | 1604 |
| Overall height(mm) | 1283 |
| Overall weight(Kg) | 454 |
| Lateral displacement distance (mm) | ±250 |
| Maximum lifting capacity (T) | 1.2 |
| Fork spacing (mm) | 50-1260(inside width of fork teeth) |
| Required hydraulic flow(L/min) | 30-40 |
| max pressure(MPa) | 21 |
| Applicable model | Slip loader/small loader |
