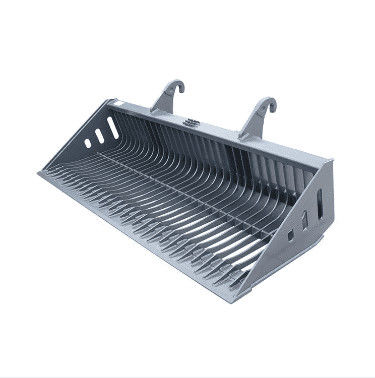

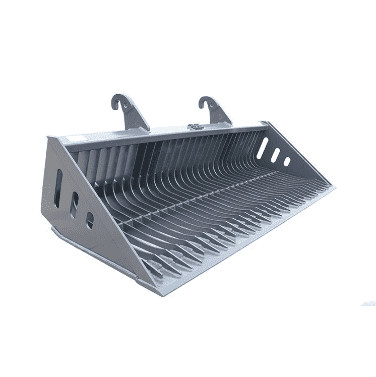

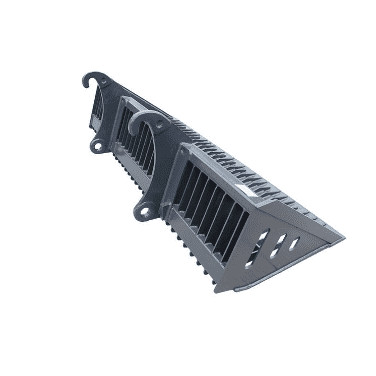

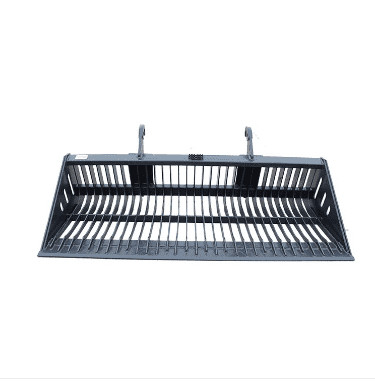

Multifunctional Sliding Loader Supporting Operation Tools Raster Bucket
Main features of the product:
1. This machine is suitable for sliding loader, mainly used for screening and handling loose materials.
2. When adapting small loader, please install the limit block (receiving bucket, tipping bucket) according to the host situation
Ps: The product is constantly updated and improved, we reserve the right to change the parameters and design without informing the user in advance. There may be differences between the appearance color of the product in the photo and the actual product, and the color standard shall prevail in kind
A sliding loader bucket is a type of excavator bucket that is designed to slide forward and backward on a frame or rails attached to the excavator arm. This allows the operator to extend the reach of the excavator, making it easier to dig trenches or load material into trucks.
Sliding loader buckets are commonly used in construction, mining, and other heavy equipment applications. They are typically made of steel and come in a range of sizes and capacities to suit different types of excavators and job requirements.
Some sliding loader buckets may also have additional features such as teeth or cutting edges to help with digging through tough materials like rock or clay. Others may be designed with a curved shape to improve the bucket's ability to scoop and retain material.
Main technical parameters of the product:
| Model | 010160 | 010172 |
| Overall width(mm) | 1580 | 1890 |
| Overall length(mm) | 945 | 945 |
| Overall height(mm) | 700 | 700 |
| Grid spacing (m) | 62 | 62 |
| Paperback bucket capacity(m³) | 0.25 | 0.3 |
| Overall weight(Kg) | 276 | 290 |
| Applicable model | Slip loader/small loader | |
