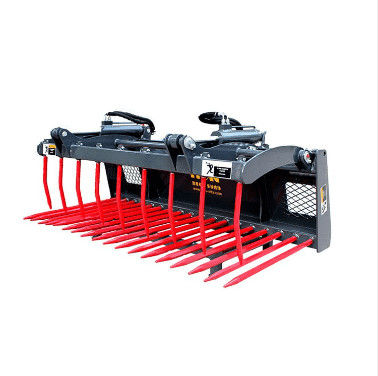

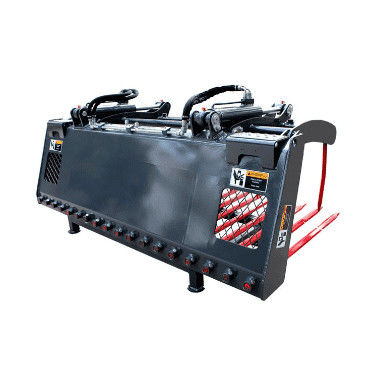

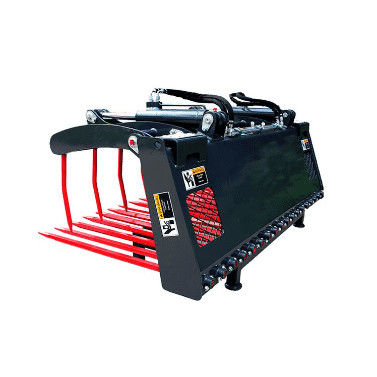

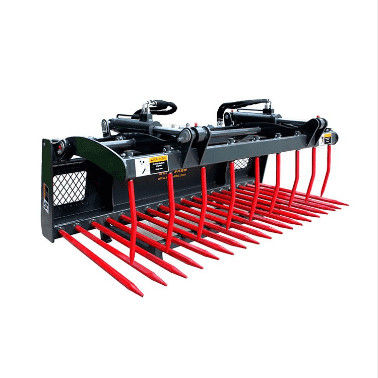

Multifunctional Sliding Loader Supporting Operation Tools
Main features of the product:
The product is mainly used in farming and animal husbandry places, transfer haystack, branches and other bulk materials.
1. Forked tooth is made of high strength material by heat treatment forging, with strong toughness and wear resistance.
2. The user can adjust the number and position of the upper and lower fork teeth according to the actual working condition, making the operation more convenient.
Ps: The product is constantly updated and improved, we reserve the right to change the parameters and design without informing the user in advance. There may be differences between the appearance color of the product in the photo and the actual product, and the color standard shall prevail in kind
Main technical parameters of the product:
| Model | 052572 |
| Overall width(mm) | 1820 |
| Overall length(mm) | 1050 |
| Overall height(mm) | 730 |
| Opening span (mm) | 1000 |
| Number of upper crosses | 5 PCS (optional 9 PCS) |
| Number of bottom forks | 10 PCS (optional 18 PCS) |
| Overall weight(Kg) | 330 |
| max pressure(MPa) | 12~20 |
| System flow (L/min) | 30~50 |
| Rated load (Kg) | 300 |
