Multifunctional Sliding Loader Supporting Operation Tools -Ditching Machine

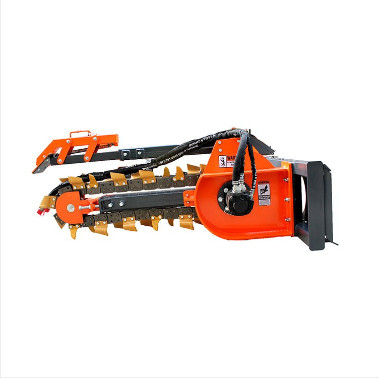

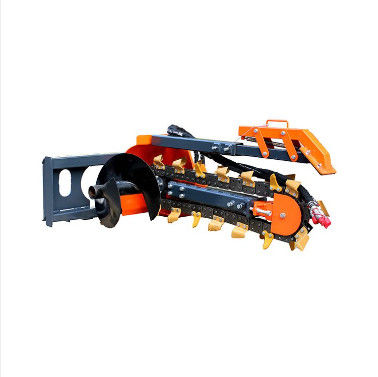

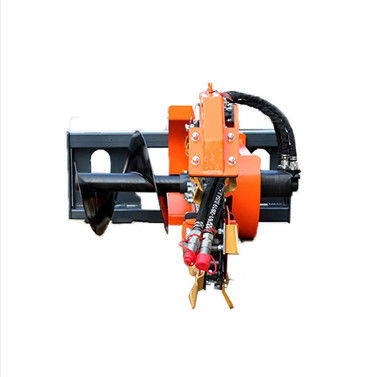

Ditching machine The main features of the product:
1, This product is continuous ditching machine, can be adapted to sliding loader, excavator.
2, this machine is mainly used for digging trenches, grooving, laying underground farmland pipeline, urban and rural optical cable.
3. Adjustable trench depth, manual side movement adjustment can make the trench machine close to the wall operation.
Main technical parameters of the product:
| Model | 20724 | 20736 | 20748 | 20760 |
| Overall length(mm) | 1703 | 1990 | 2355 | 2550 |
| Overall height(mm) | 767 | 767 | 767 | 700 |
| Overall width(mm) | 1330 | 1330 | 1330 | 1330 |
| Overall weight(Kg) | 360 | 400 | 430 | 520 |
| 65° trench depth (mm) | 600 | 900 | 1200 | 1500 |
| Furrow width | 150 | 150 | 150 | 150 |
| Required hydraulic flow(L/min) | 80-110 | 90-110 | 90-110 | 110-130 |
| max pressure(MPa) | 16-21 | 16-21 | 16-21 | 16-21 |
