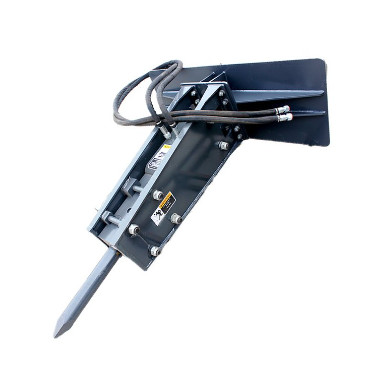

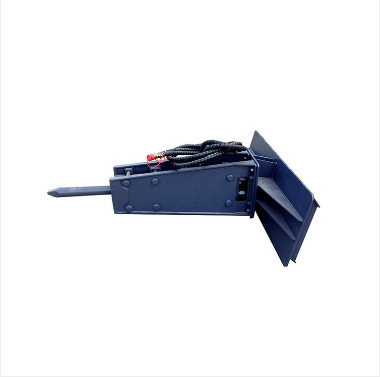

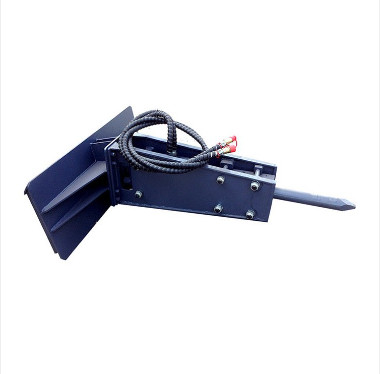

Multifunctional Sliding Loader Supporting Operation Tools Crushing Hammer
Main features of the product:
1. This product is an airborne hydraulic hammer, which can be adapted to excavator and slip loader.
2. Use the power of the main engine system to achieve a wide range of functions of the hydraulic hammer.Application: mining, gold treatment,
municipal engineering,Road works, etc.
3. Please install (receiving bucket, tipping bucket) limit block according to the host situation
Main technical parameters of the product:
| Model | 020375 | 020370 | 020353 | 020345 |
| Overall length(mm) | 1200 | 1200 | 1200 | 1200 |
| Overall width(mm) | 812 | 809 | 747 | 747 |
| Overall height(mm) | 2036 | 1692 | 1493 | 1431 |
| Rod diameter (mm) | 75 | 70 | 53 | 45 |
| Required hydraulic flow(L/min) | 35~65 | 30~45 | 25~45 | 25~40 |
| Working pressure (bar) | 110~160 | 110~160 | 110~140 | 110~140 |
| Impact frequency (bpm) | 500~700 | 500~800 | 500~900 | 500~1000 |
| Nitrogen chamber pressure (Kg/cm2) | 14~16 | 14~16 | 1416 | 14-16 |
| Overall Weight (Kg) | 447 | 341 | 231 | 200 |
| Applicable model | 6~9 tons excavator | 4~7 tons excavator | 2.5~-4.5 tons excavator | 12~3 tons excavator |
